Ibanez 1986 IMG-2010 Pearl Silver
Ibanez 1986 IMG-2010 Pearl Silver

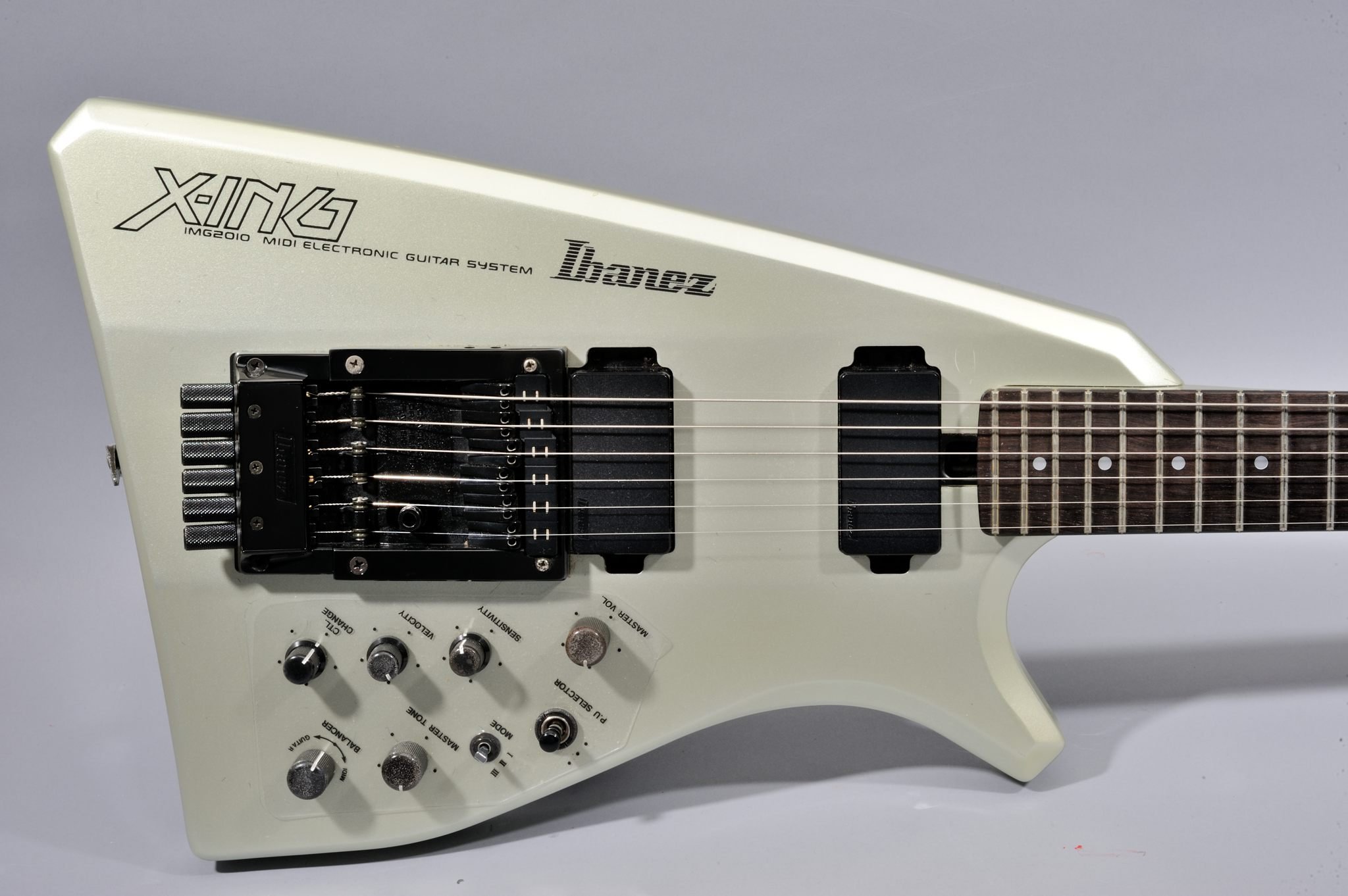

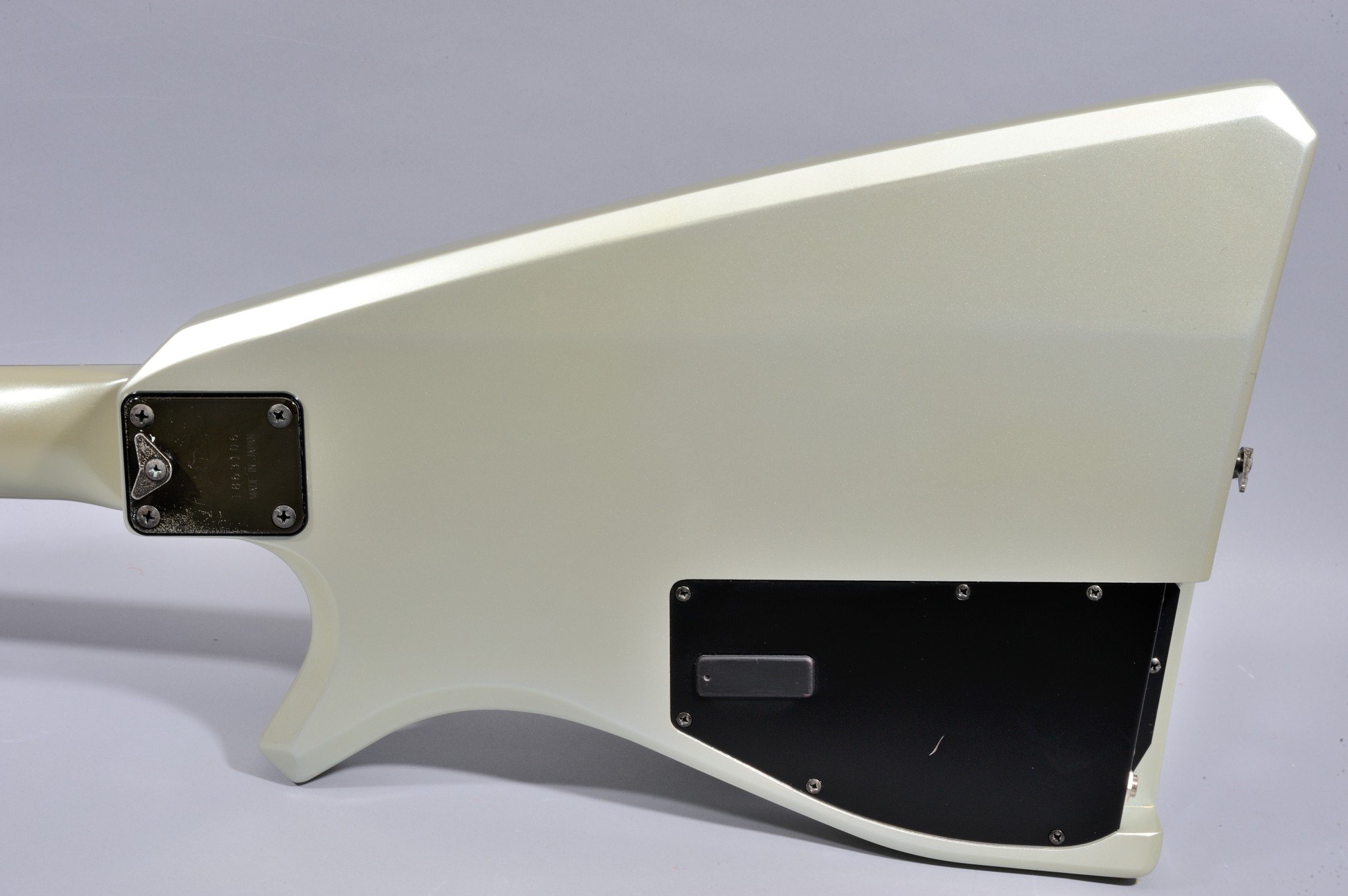

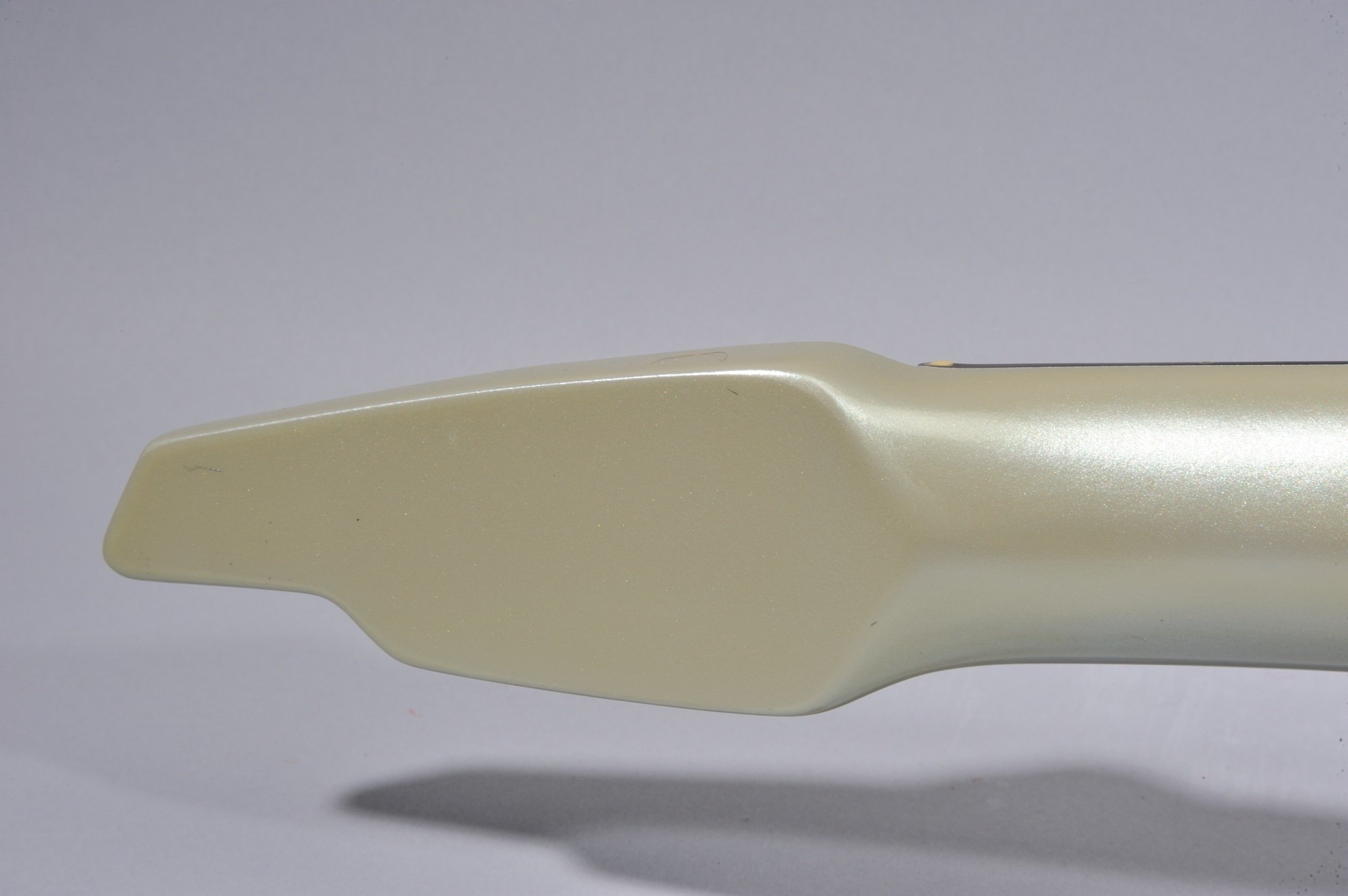

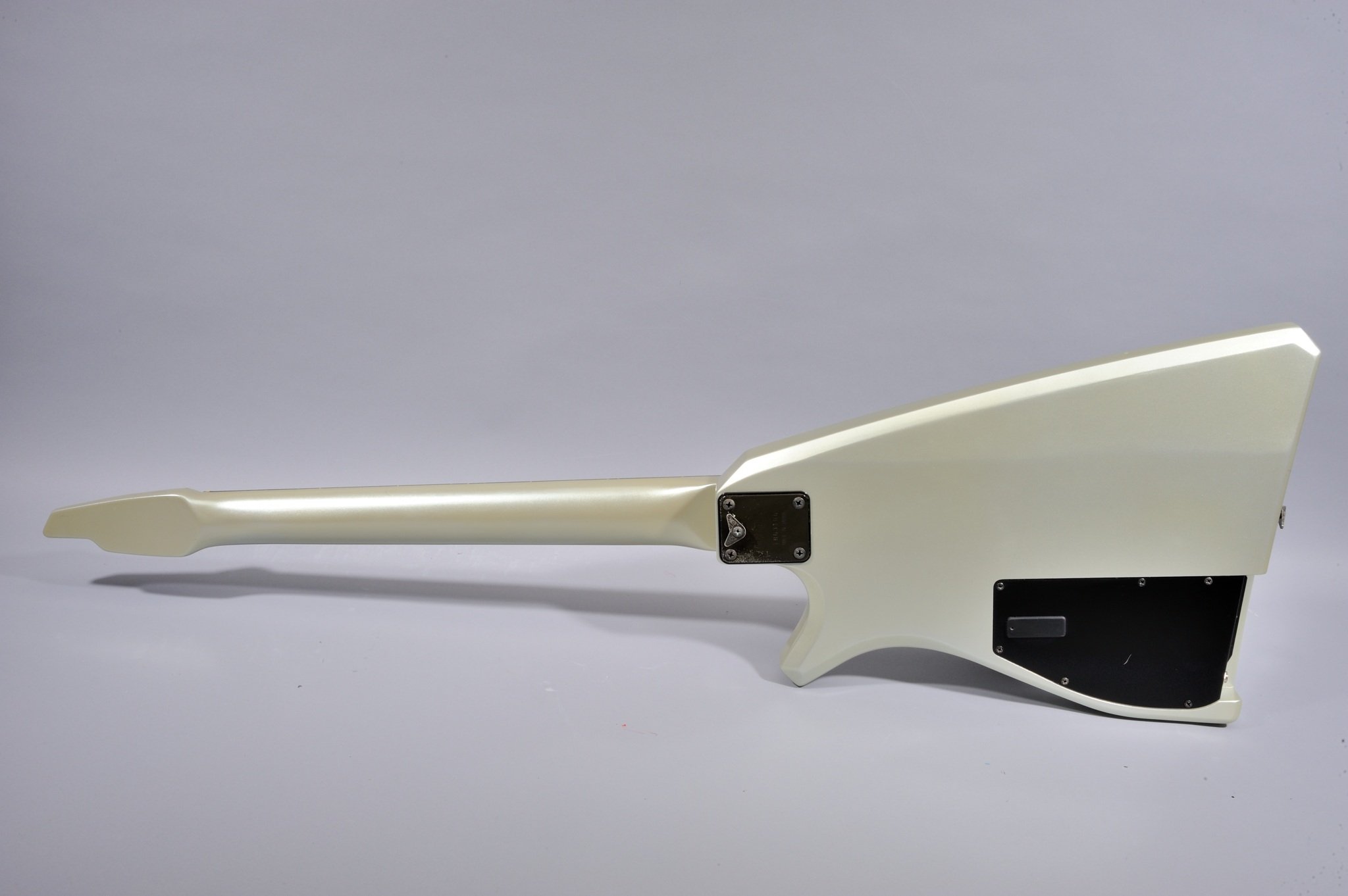

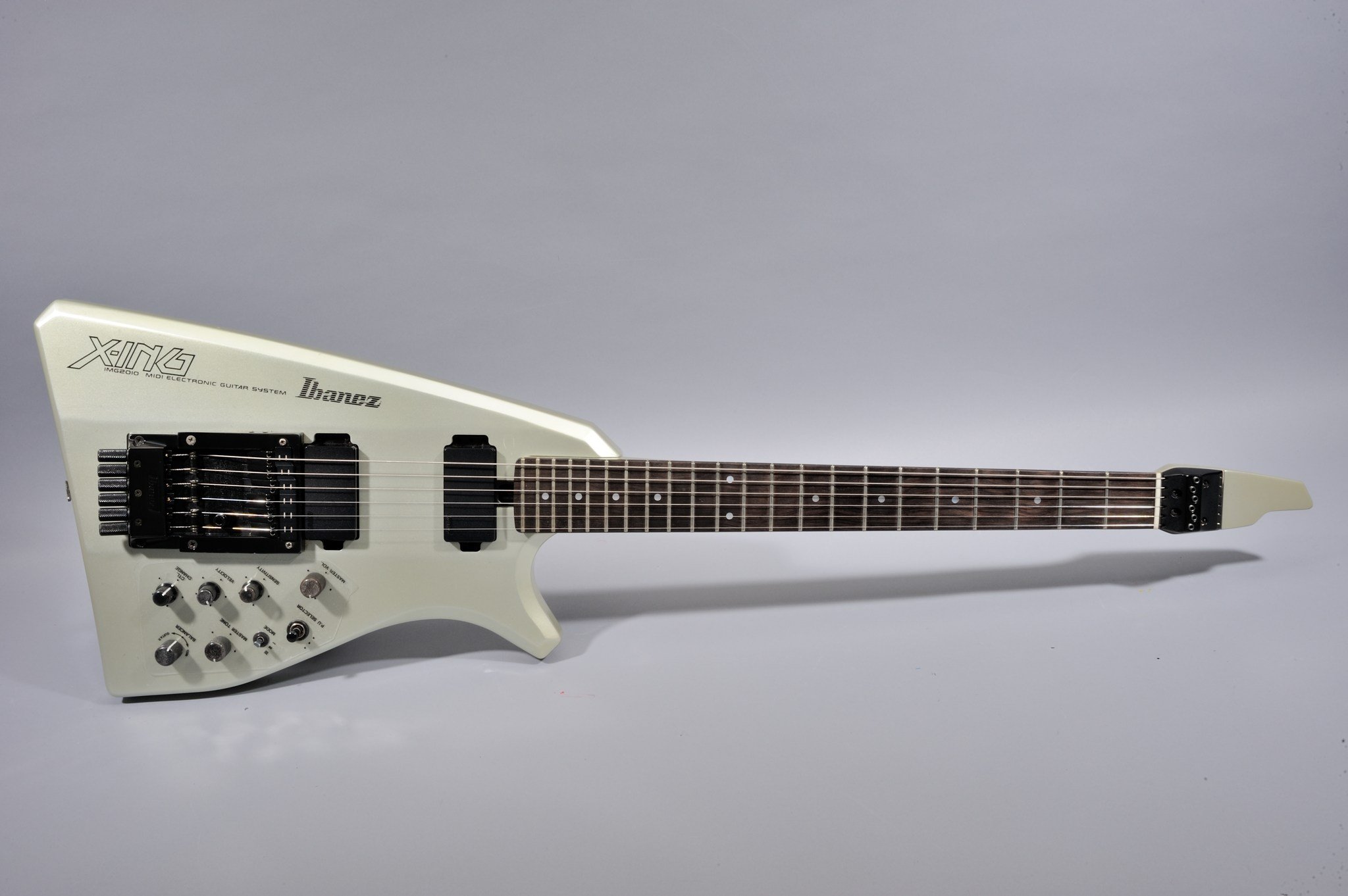

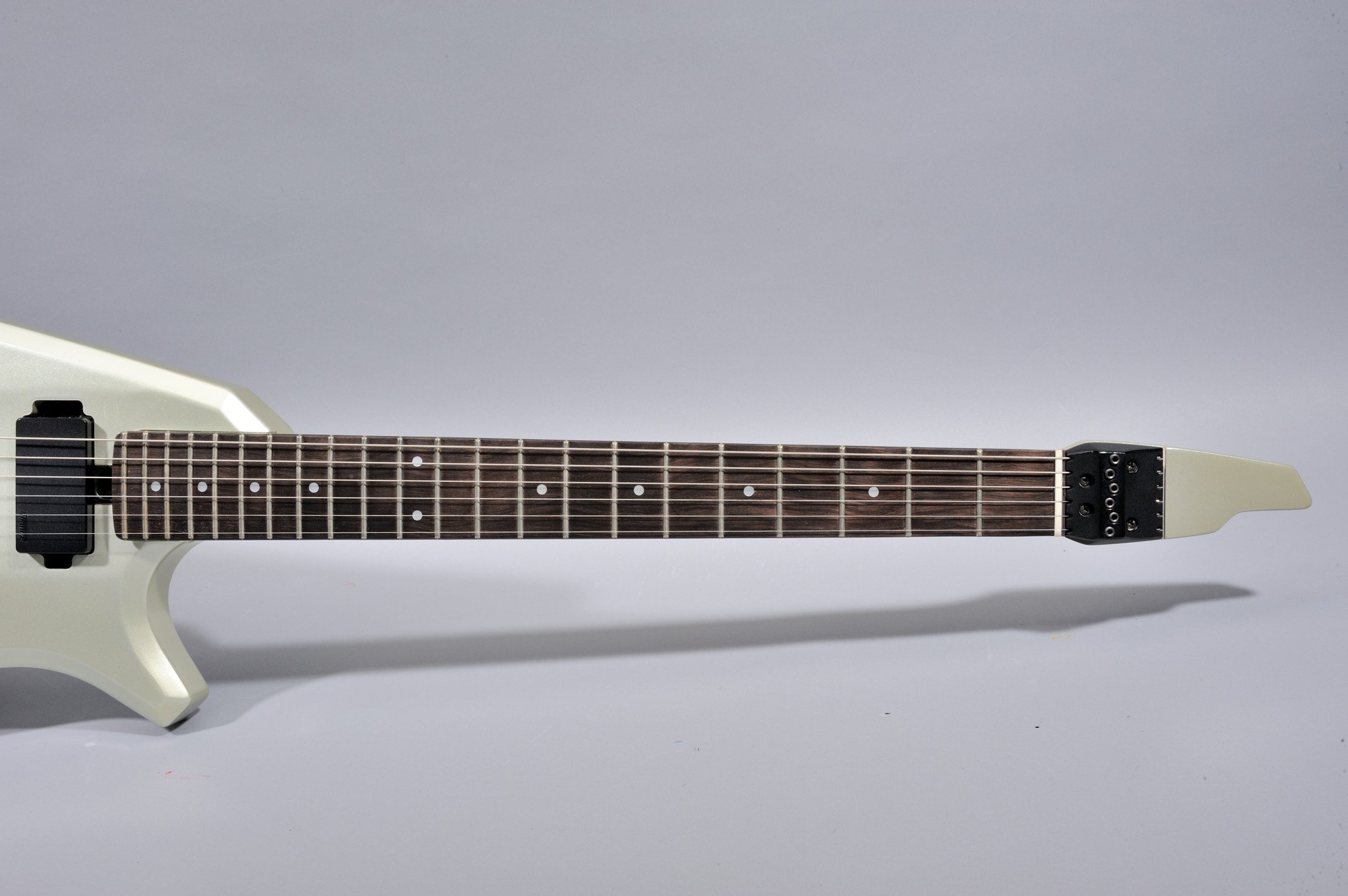

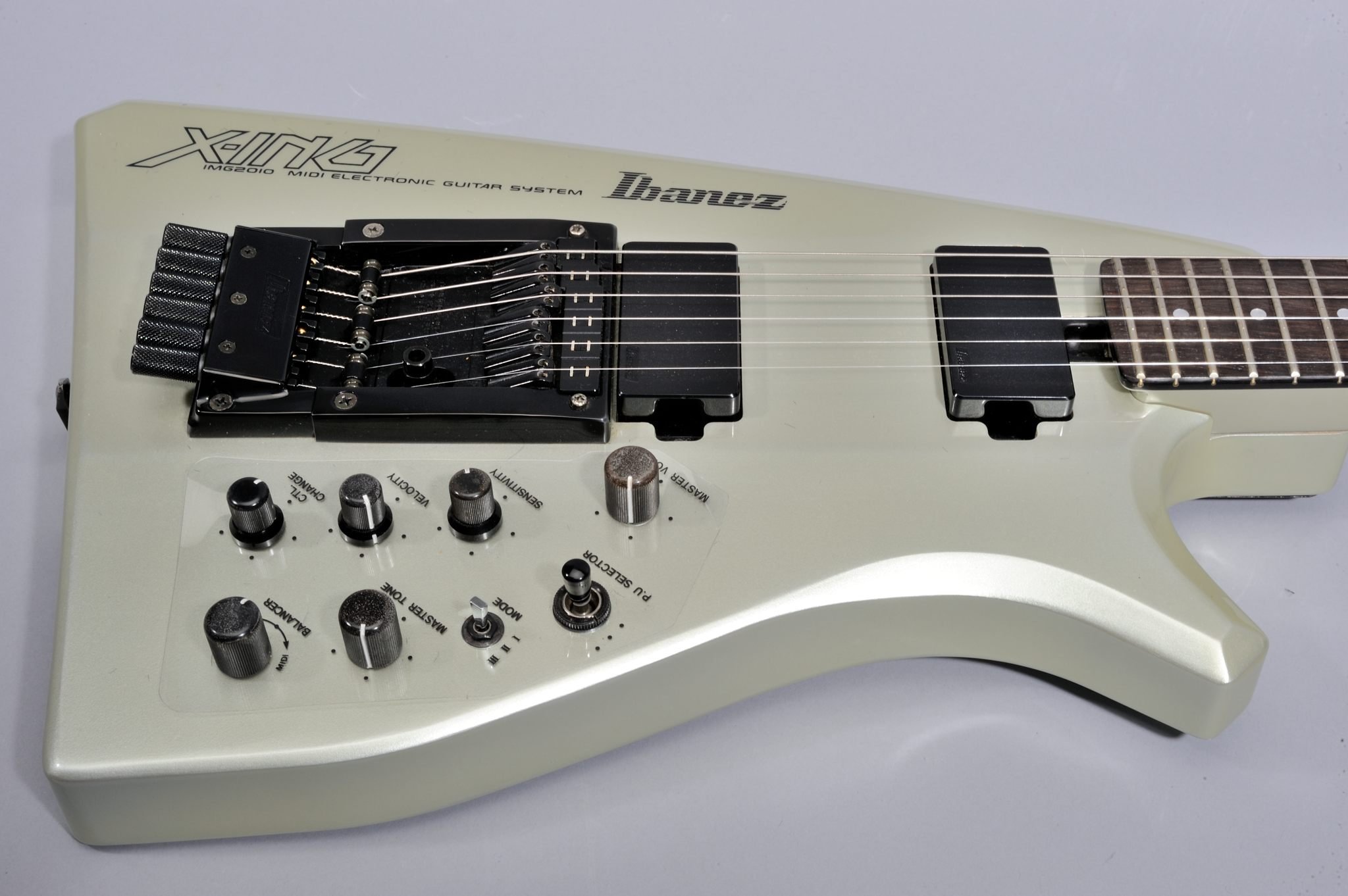

Ibanez 1986. IMG-2010 in Pearl Silver Finish.
2000 built.
#1863106.
Ibanez IMG2010 Guitar Synthesizer Controller
Features and Specifications:
Body: Maple
Finish: Black or Silver

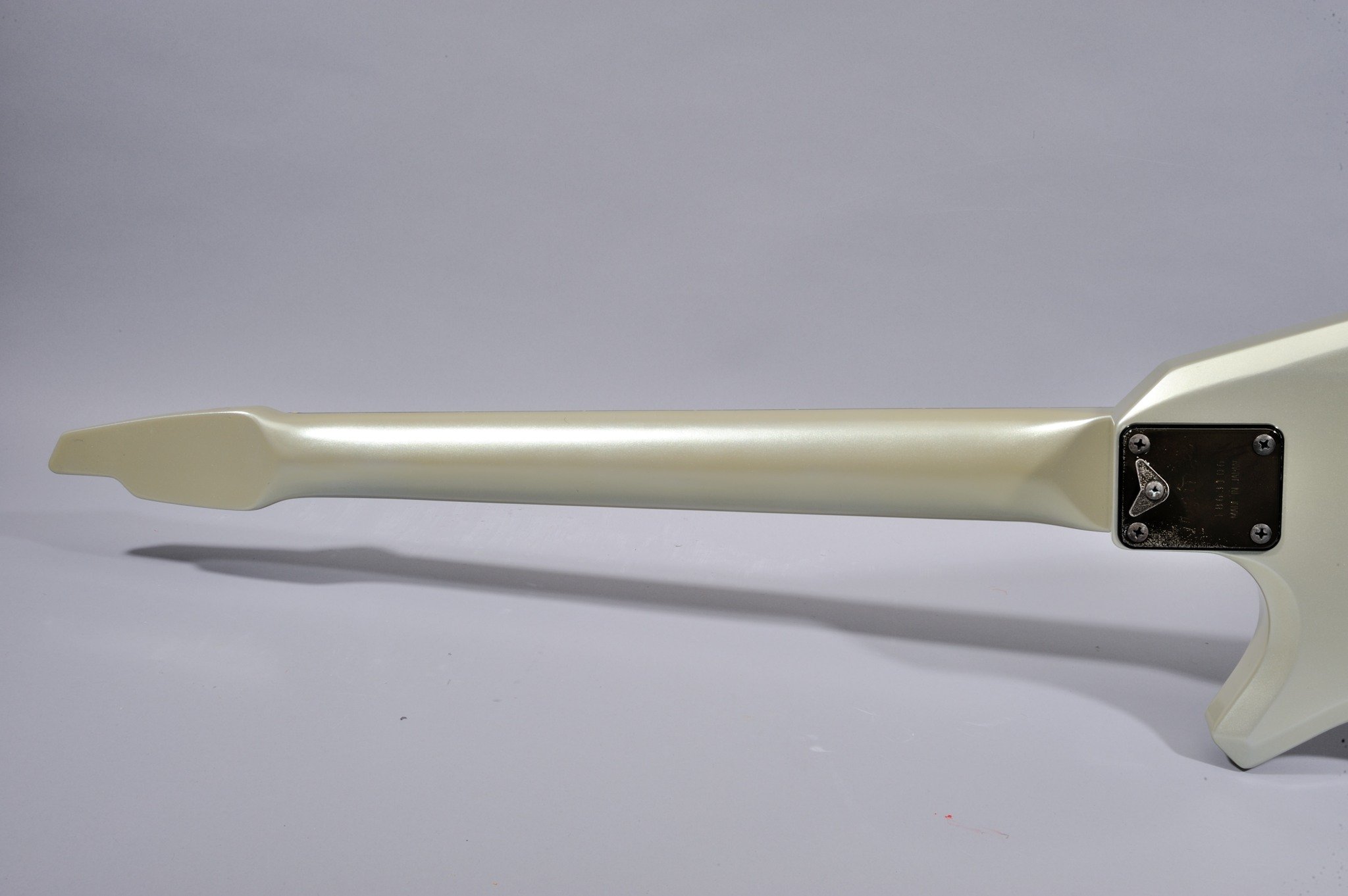

Neck: Maple, 1 piece with GFRP bar with truss rod
Fingerboard: Ebony
Frets: 22

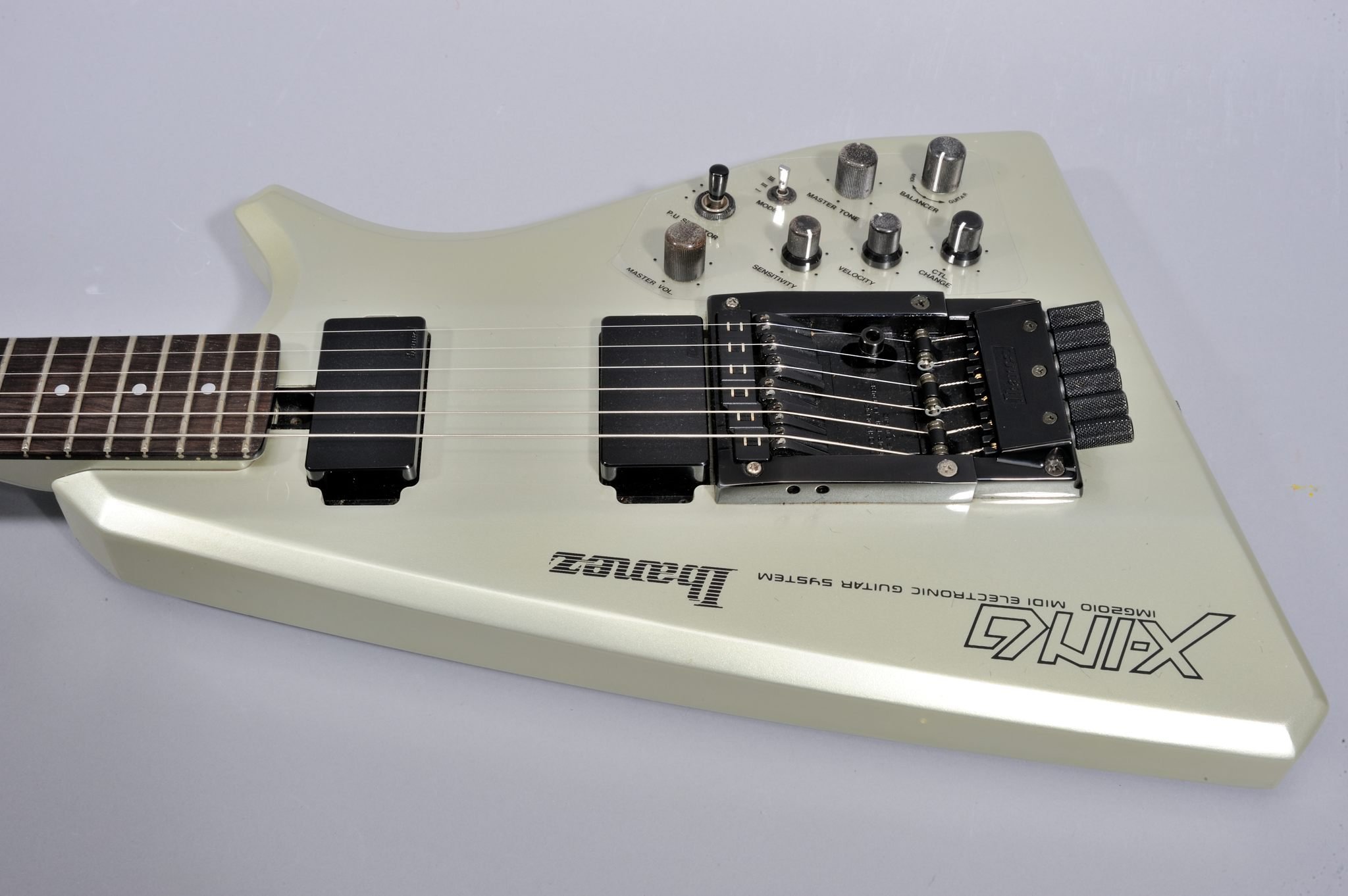

Bridge: Custom Ibanez with integrated hex pickup
Nut: N/A

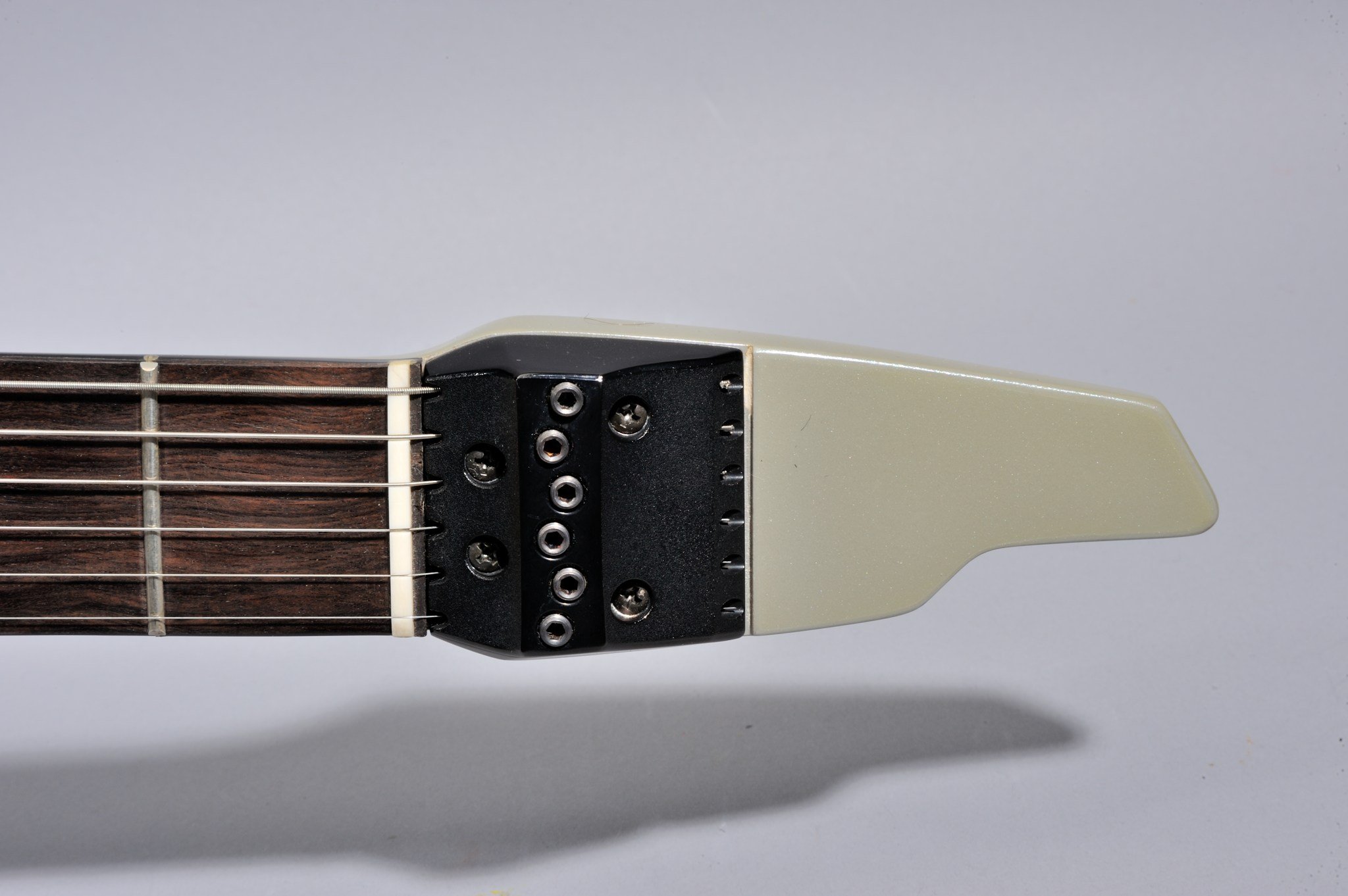

Tuning machines: Ibanez Microtuners
Pickups: Two Ibanez Humbuckers
Scale: 25 1/2"
Truss Rod: Single, adjustable
Neck Width: 1 5/8"
Body Width: 12"
Body Depth: 1 1/2"
Overall Length: 37"
Weight: 8 lbs.
Included Gig Bag
Ibanez MC1 Pitch-to-MIDI Converter
Features and Specifications:
Continuous control of MIDI trigger threshold
Continuous control of MIDI dynamic range
Effects Loop Send and Return
Peak and decay calibration mode
10 segment display for string dynamics
Two mono synth inputs, internal Voltage Controlled Amplifiers are used to control guitar and synth levels
Dedicated HOLD foot switch with front panel display LED
Dedicated front panel Chromatic mode LED
Built by Maxon Electronics (manufacturer of Ibanez foot pedals)
Dedicated multifunction edit keys for easy editing, with support for assignable MIDI control numbers from 0 to 32
Optional use of Ibanez IFC60 foot pedal controller to change patches
Dimensions: 482 mm (W) 276 mm (H) 44 mm (D)
Power Requirements: 12 watts
Weight: 4.0 kg 8 lb. 13 oz.
Response Time: 33.62 ms
Ibanez IFC60 Foot Controller
IFC60
The Ibanez IFCO60 (Intelligent Foot Controller) is a foot controller that was sold with the MC1 as a set.
It features five programs foot switches, plus a bank foot switch. It also works with the Ibanez DUE400, EPP400 and the SDR1000+ Digital Reverb.
Similar to the way the Roland FC100 and FC-100 MKII can be used as stand alone MIDI pedals with the Roland RMC-1, the IFC60 has the ability to be used as a stand-alone MIDI foot controller when used with the Ibanez MIU8 MIDI Interface. The hard-to-find MIU8 is a really cool box, that could double as a 1-in, 8-out MIDI thru box, or as a MIDI interface/breakout box for the IFC60.
